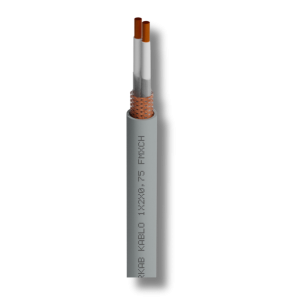

HALOGEN-FREE, FLAME RETERDANT, SCREENED POWER CABLE
CABLE STRUCTURE
CONDUCTOR: IEC 60228 class 2 or class 5 tinned or bare copper
INSULATION: IEC 60092-351 cross-linked polyethylene (XLPE)
TWIST: Cores laid up in pair, pairs laid up concentrically.
INNER SHEAT: Seperating foil or halogen-free bedding compound on request.
SCREEN: Tinned copper or annealed copper wire braided screen (min. 90% Off)
SHEATH/SHEATH COLOUR: IEC 60092-359 HFFR compound/RAL 9005 black or RAL 7001 gray
Category: Marine Cables
Tags: FM2XCH, FMXCH, marine, marine cable
Product ID: 6796
